Vision-Guided Optic Flow Navigation for Small Lunar Missions

Engineering
Software
Robotics
Space
Author

Sean Cowan, Pietro Fanti, Leon B. S. Williams, Chit Hong Yam, Kaneyasu Asakuma, Yuichiro Nada, Dario Izzo

Published

May 16, 2026

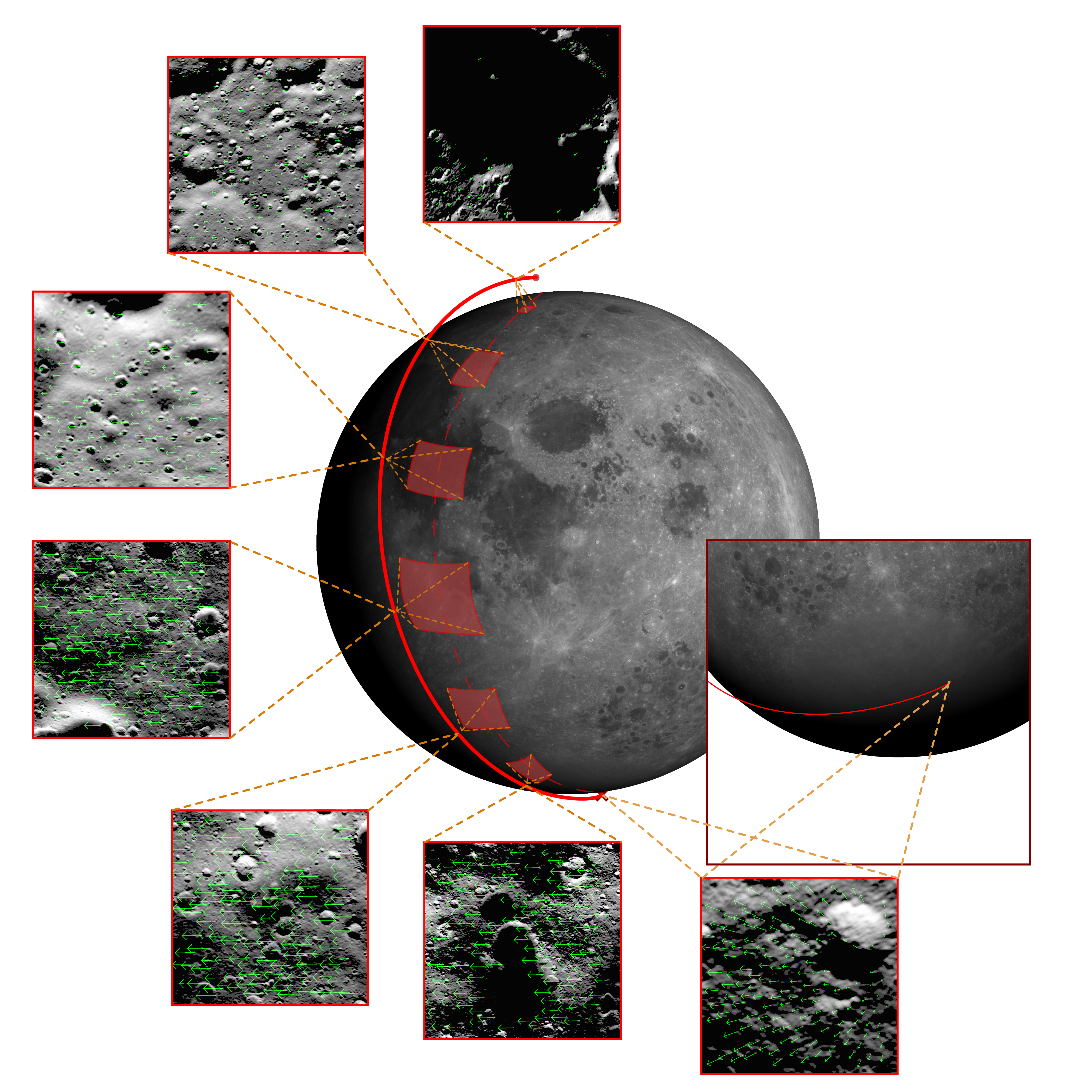

Composite illustration of the end-to-end lunar descent trajectory provided by ispace, combining orbital transfer and landing phases. Frames along the trajectory display the corresponding optical flow fields, showing increasing flow magnitudes as altitude decreases while velocity remains high. Flow intensity diminishes only during the final braking and touchdown phase. The lunar surface texture is included for visualization purposes.

Private lunar missions are faced with the challenge of robust autonomous navigation while operating under stringent constraints on mass, power, and computational resources. This work proposes a motion-field inversion framework that uses optical flow and rangefinder-based depth estimation as a lightweight CPU-based solution for egomotion estimation during lunar descent. We extend classical optical flow formulations by integrating them with depth modeling strategies tailored to the geometry for lunar/planetary approach, descent, and landing—specifically, planar and spherical terrain approximations parameterized by a laser rangefinder. Motion field inversion is performed through a least-squares framework, using sparse optical flow features extracted via the pyramidal Lucas-Kanade algorithm. We verify our approach using synthetically generated lunar images over the challenging terrain of the lunar south pole, using CPU budgets compatible with small lunar landers. The results demonstrate accurate velocity estimation from approach to landing, with sub-10% error for complex terrain and on the order of 1% for more typical terrain, as well as performances suitable for real-time applications. This framework shows promise for enabling robust, lightweight onboard navigation for small lunar missions.

The full paper is available here
